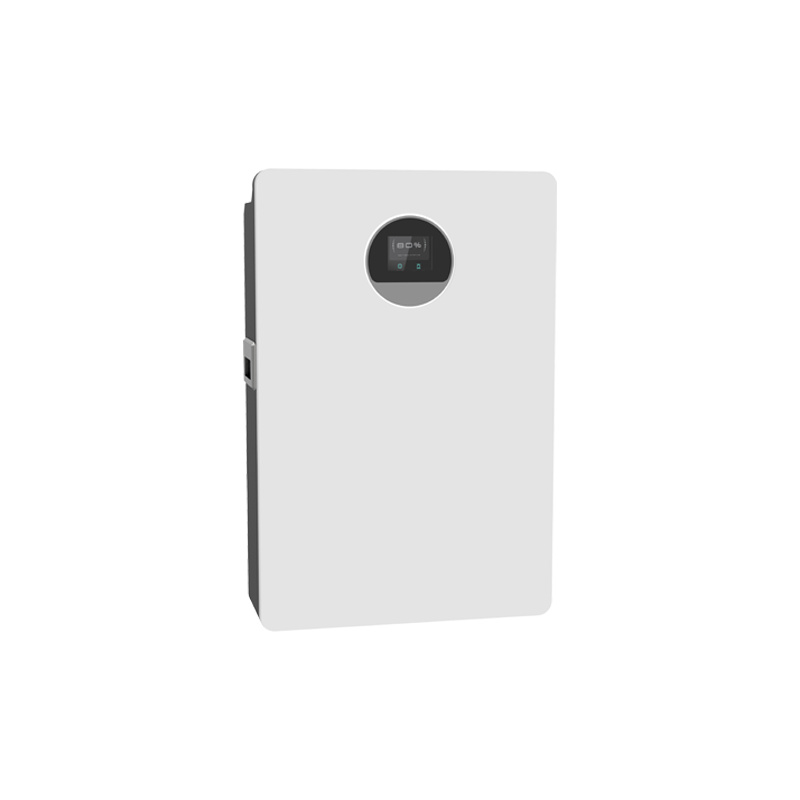

51.2V 16S LIFEPO4 BATTERY WALL-MOUNTED 10KWH

The wall-mounted lithium battery uses lithium iron phosphate(lifepo4) as the positive electrode material, with stable chemical properties and high safety performance. With a cycle life of over 6,000 times, it can be used as a long-term and stable home backup energy source. Wall-mounted batteries are small and take up little space, but they are simple to install and require almost no maintenance. The battery Up to 160kWh power storage with max.16 units paralleling connected and achieve the needed power. Gospower GPLB-48200M wall mounted lithium battery Support customizing battery voltage, current, capacity, appearance, etc. Provide battery OEM, ODM services.10-year after-sales guarantee, professional technical support.

GPLB-48200M
Nominal Energy (kWh)		10.24
Nominal Voltage (V)		51.2
Nominal Capacity(Ah)		200
IP Rating		IP 20
Output Power (kW)		5.12
						Voltage Range (V)		43.2~58.4
Charge Voltage (V)		56.8~58.4
						Charge Current (A)		100
Discharge Current (A)		100
Charge Mode		CC-CV
Communication		CAN / RS485 / RS232
Charge Temperature		0-55 ℃
Discharge Temperature		-20 – 55 ℃
Designed Life		10+Years
Cycle Life		>6000(@25℃,80%DOD)
Weight  (kg)		45
